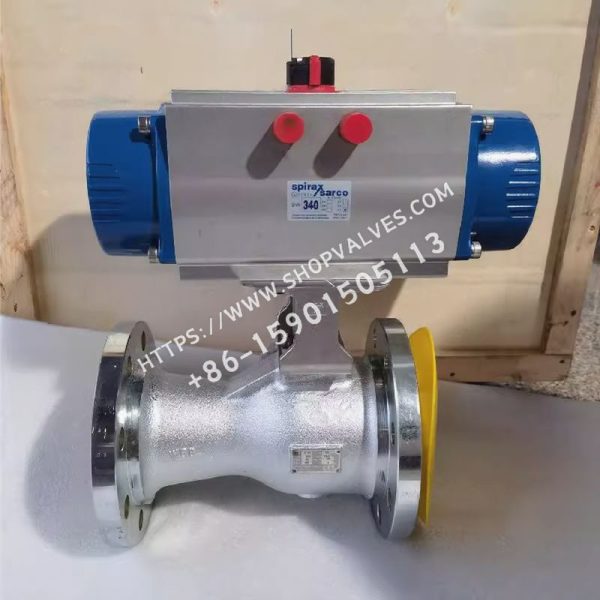

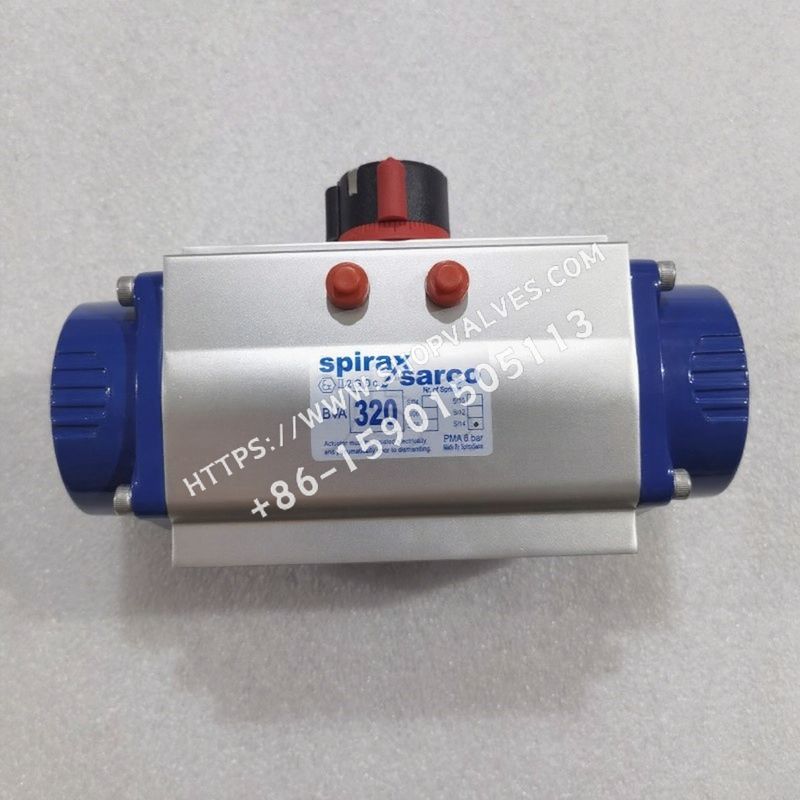

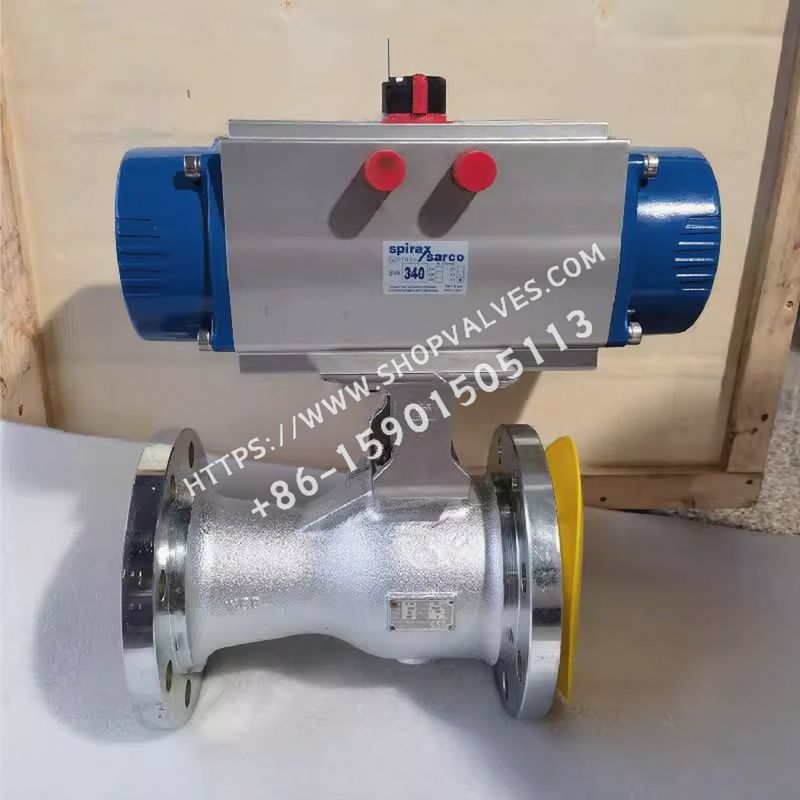

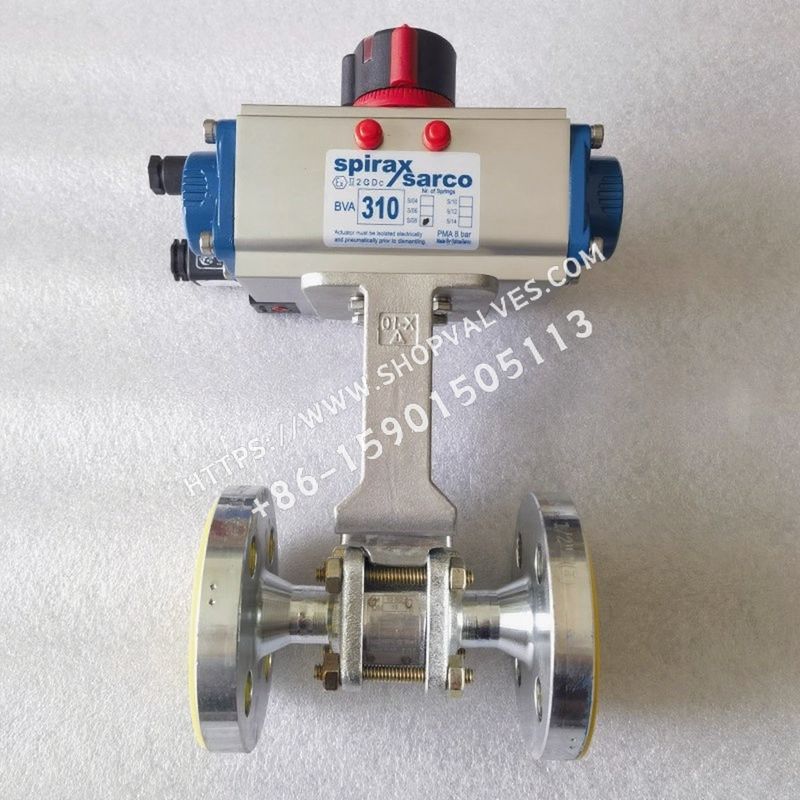

Spirax Sarco Spirax Sarco BVA310/BVA315/BVA320/BVA325/BVA330/BVA335/BVA340 Pneumatic Actuators

The Spirax Sarco BVA300 series pneumatic actuator is used to actuate Spirax Sarco ball valves in a variety of broad industrial applications. This series of actuators has bi-directional stroke limitation for 90º ± 5º rotation and the new BVL-X connection with extended stem. Its pneumatically actuated ball valves cover a wide range of three-stage, two-stage and one-stage ball valve models.

Technical data

• Maximum pressure:: 8 bar g
• minimum pressure:: 3 bar g
• Operating pressure range (standard): 3, 4, 5 or 6 bar g
• Operating Temperature Range: -30°C - 100°C (other operating temperature range models available)
• Working mediumCompressed air (clean, dry), non-corrosive gases, light oil (must be compatible with "O" ring material) rotated 90 ±5°, hole "A" pressurized and rotated counterclockwise.

Additional Options

• Limit switch boxA range of limit switch boxes are available to indicate the position of the ball valve, the switching point can be set at any point throughout the travel of the actuator. Standard switch boxes are IP67 rated and are available as LSB31 (contact switch (2 x SPDT)), LSB71 (contact switch (2 x SPDT) Exd IIC T6), LSB32 (10 - 30 Vdc 3-wire proximity sensor (NPN)), LSB72 (10 - 30 Vdc 3-wire proximity sensor (NPN) Exd IIC T6), LSB33 (8 Vdc 2-wire proximity sensor (NPN)), LSB33 (8 Vdc 2-wire proximity sensor (NPN)), and LSB33 (8 Vdc 2-wire proximity sensor (NPN)). Exd IIC T6), LSB33 (8 Vdc 2-Wire Proximity Sensor), LSB73 (8 Vdc 2-Wire Proximity Sensor Exd IIC T6 Isolated), LSB34 (5 - 60 Vdc 2-Wire Proximity Sensor), LSB74 (5 - 60 Vdc 2-Wire Proximity Sensor Exd IIC T6 Isolated).
• solenoidsNamur solenoid valves are available for BVA actuators with IP65 encapsulation to control compressed air or non-corrosive gases entering the actuator, and can be supplied in explosion-proof versions. Solenoid valve coil voltages are 3/2 NAMUR for single acting actuators (220VAC, 110VAC, 24VAC/dc) and 5/2 NAMUR for double acting actuators (220VAC, 110VAC, 24VAC/dc).

material (that sth is made of)

BVL_X Connection kit material

The stem adapter and frame actuator mounting screws are made of AISI 304 stainless steel.

Weight (approximate)

Available Models

• double acting: 310D, 315D, 320D, 325D, 330D, 335D, 340D, 345D, 350D, 355D, 360D, 365D
• Single acting (spring return type): 310S, 315S, 320S, 325S, 330S, 335S, 340S, 345S, 350S, 355S, 360S, 365S

Selection table

The selection table (pages 4 - 12) is used to select the correct pneumatic actuator for the relevant Spirax Sarco ball valve, for valves not appearing in the table, please contact Spirax Sarco. It contains the selection for different types of ball valves such as 3-stage ball valves, 2-stage ball valves, one-piece ball valves, etc. The BVA actuator model and BVL connector model are matched according to the ball valve model, nominal diameter (DN), and actuator working pressure.

How to Order

The selection chart (pages 4 - 11) must be consulted before ordering.
Ordering example: 1 Spirax Sarco BVA320S/8 actuator, 1 MV13 24 Vac solenoid valve, 1 set of BVL303X connections, 1 LSB72 limit switch box.
Note: Pneumatic ball valves are factory assembled according to the application.

Spare Parts

Spare parts available include type ring assemblies (available in NBR, Viton or Silicon), pinion washers and other parts (Specific Nos. 5,6,10,17,18). All of the above mentioned spare parts are supplied as a unified spare parts package.
Spare parts are usually ordered using the description in the "Spare parts available" column and indicating the model number of the pneumatic actuator.
Example: Repair kit for Spirax Sarco BVA 320S/08 pneumatic actuator (with NBR "O" ring).
Depending on the air supply pressure, BVA actuators have different spring configurations, see IM-P372-24 for details.
