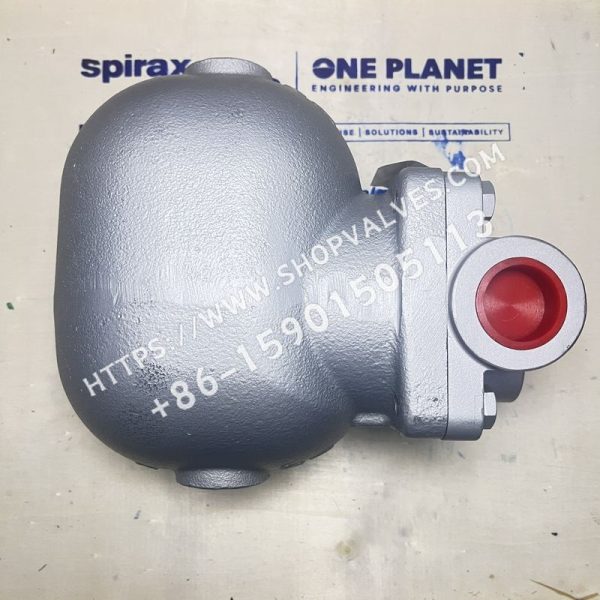

Spirax Sarco FTGS14HC-14/FTGS14HC-10/FTGS14HC-4.5 Float® Steam Trap Threaded/Flanged

The FTGS14HC is a Spirax Sarco float steam trap (1" threaded connection) with an austenitic stainless steel body, a built-in automatic air vent, and a nickel-plated ductile iron cover for good corrosion resistance, and in-line maintenance without piping disassembly.

Available Models

• FTGS14HC(R-L): Horizontal connection, flow direction right to left
• FTGS14HC(L-R): Horizontal connection, flow direction left to right

draw attention to sth.: Consult Spirax Sarco if a change of direction is required on site.

fluid sac

Featuring the BP99/32 liquid bladder, it can be used for superheated steam with a superheat of 150°C@0 barg, 50°C@32 bar g.

selectable

• In addition to an air vent, this model has a Steam Lock Relief (SLR) to prevent steam locking in the system, and is designated with the letter C. Please contact Spirax Sarco for further information.
• A 3" BSP or NPT threaded hole can be drilled in the top of the bonnet for mounting a counterbalance tube.
• A 3/" BSP or NPT threaded hole can be drilled in the bottom of the bonnet for mounting a bleeder valve.

Standards and Certificates

• This product complies with the European Pressure Equipment Directive 97/23/EC.
• Typical test reports from the manufacturer are available for this product. If a certificate is required, please specify when ordering.

Sizes and pipe connections

1" BSP or NPT threaded connection.

Scope of work

sports event	parameters
Valve Body Design Conditions PMA Maximum Allowable Pressure	PN25 25 bar g @120
TMA Maximum Allowable Temperature	300°C
Minimum permissible temperature	-10°C
PMO Maximum Working Pressure for Saturated Steam	17 bar g
TMO Maximum Operating Temperature	288℃C@15barg
Minimum working temperature	0°C
APMX Maximum Differential Pressure	FTGS14HC - 4.5 4.5 bar FTGS14HC - 10 10 bar FTGS14HC - 14 14 bar
Design maximum cold hydraulic test pressure	37.5barg

take note of: The product must not be operated outside the specified range, otherwise the internal parts may be damaged.

material (that sth is made of)

Item	Part	material (that sth is made of)	(an official) standard
1	valve body	austenitic stainless steel	EN 10213 - 4 (1.4308) ASTM A351 CF8
2	Bonnet bolts	-	BS 3692 Gr. 8.8
3	Bonnet Gasket	Reinforced flake graphite	-
4	bonnets	Nickel-plated ductile iron	DIN 1693 GGG 40
5	Main valve seat	stainless steels	BS 970 431 S29
6	Main valve gasket	stainless steels	BS 1449 304 S11
7	Main valve assembly screws	stainless steels	BS 4183 18/8
8	Float Rod Mechanism	stainless steels	BS 1449 304 S16
9	Support bracket	stainless steels	BS 1449304 S16
10	Pivot bracket	stainless steels	BS 1449 304 S16
11	fulcrum pin	stainless steels	-
17	Air Vent Valve Assembly	stainless steels	-
18	Air Vent Valve Gasket	stainless steels	BS 1449 304 S11
19	SLR device	stainless steels	BS 970 303 S21
20	SLR Gasket	stainless steels	BS 1449 304 S16
21	SLR Seal	plumbago	-

weights

7.0kg

engine displacement (volume of air fuel mixture drawn in during one cycle)

Discharge shown is based on condensate discharge at saturation temperature. During the startup phase, the condensate is cold and the thermostatic air vent is open to provide additional condensate discharge. The additional cold water displacement from the evacuation air valve at different pressure differentials is shown below:

∆P (bar)	0.5	1	2	3	4.5	7	10	14
1" (kg / h)	580	600	650	670	700	1000	1300	1600

Security information, installation and maintenance

For detailed information, refer to the Installation and Maintenance Guide (M-P145-20) supplied with the product.
draw attention to sth.: The FTGS14 must be installed in the same direction of fluid flow as indicated by the arrow on the valve body, ensuring that the float arm is positioned horizontally as well as ensuring that the float can rise and fall freely and vertically.

deal with

This product is recyclable and does not cause environmental problems when disposed of properly.

How to Order

• Example 1: 1 set of Spirax Sarco 1" FTGS14HC-4.5(L-R) Float Steam Trap with BSP threaded connection with air vent. Bonnet drilled/" top counterbalance hole and bottom vent hole.
• Example 2: For an optional broken steam airlock device, the ordering instructions are as follows: 1 set of Spirax Sarco 1" FTGS14HC-4.5C(L-R) Float Steam Trap, BSP threaded, with air venting, with broken steam airlock device.

Available Models

Available types	SKU
1" FTGS14HC-4.5 R-L screwed BSP	1457190001
1" FTGS14HC-10 R-L screwed BSP	1457190002
1" FTGS14HC-14 R-L screwed BSP	1457190003
1" FTGS14HC-4.5 L-R screwed BSP	1457190007
1" FTGS14HC-10 L-R screwed BSP	1457190008
1" FTGS14HC-14 L-R screwed BSP	1457190009
FTGS14HC-4.5 R-L Flanged	1457190101
FTGS14HC-10 R-L Flanged	1457190102
FTGS14HC-14 R-L Flanged	1457190103
FTGS14HC-4.5 L-R Flanged	1457190104
FTGS14HC-10 L-R Flanged	1457190105
FTGS14HC-14 L-R Flanged	1457190106
