Spirax Sarco S13 Ductile Iron Separator (Flange Connection)

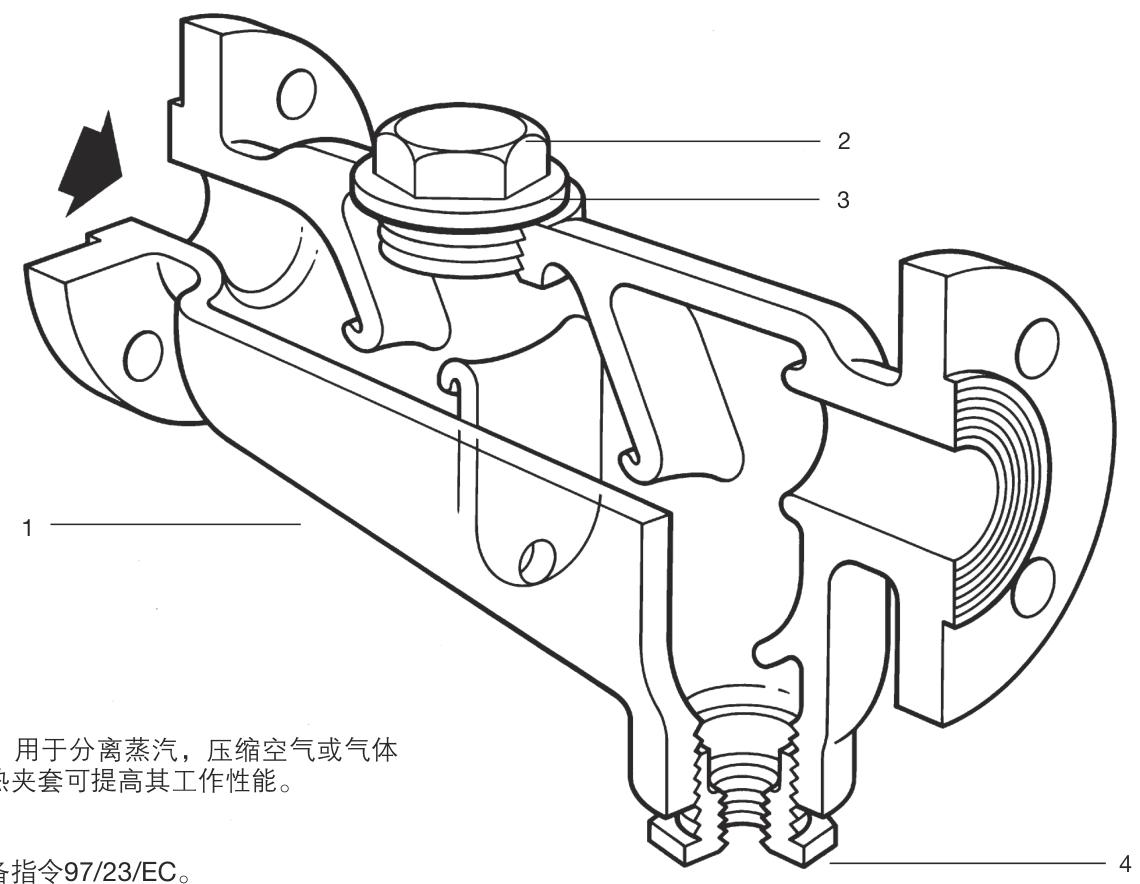

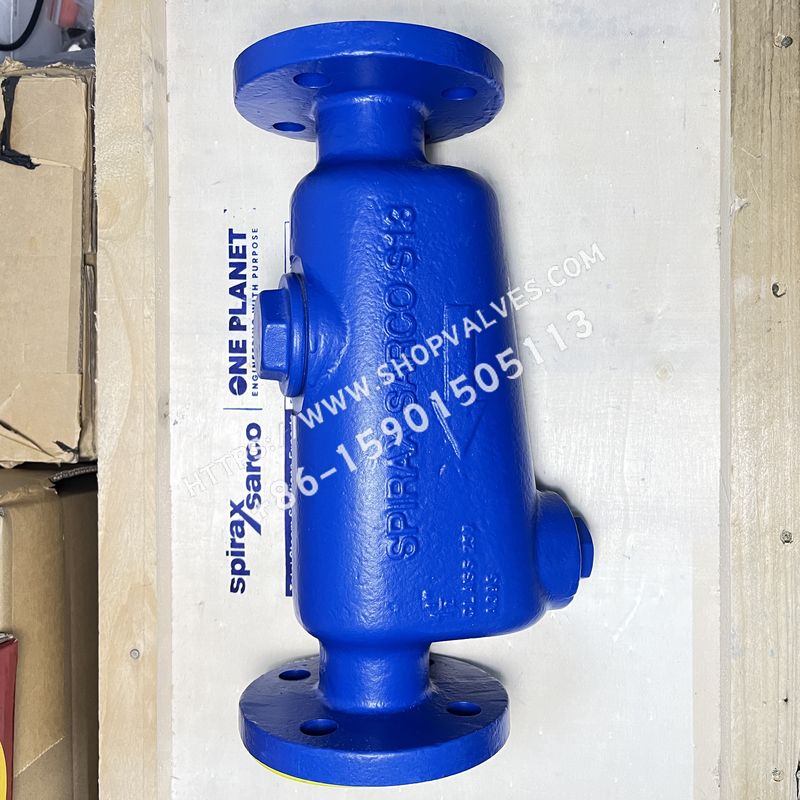

Spirax Sarco S13 Ductile Iron Separator (Flange Connection), is a baffle type separator for separating liquid droplets in steam, compressed air or gas systems, with an adiabatic jacket to improve its working performance.

(an official) standard

This product complies with the European Pressure Equipment Directive 97/23/EC.

Certification

Test reports are available for this product.

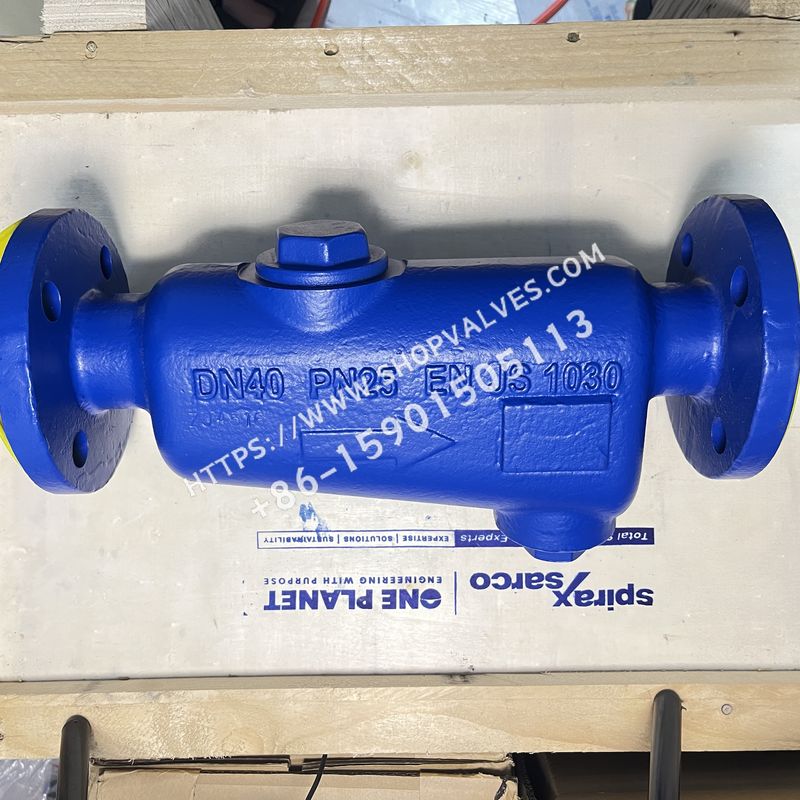

Sizes and pipe connections

DN40, 50, 65, 80, 100, 125, 150 and 200. flange connection EN1092 PN16 and PN25 with threaded connection for BSP drains; flange connection JIS/KS10K with threaded connection for BSP drains; flange connection JIS/KS20K with threaded connection for BSP drains (DN40 - DN65 and DN200 only).

restrictive condition

Valve Body Design		PN25
PMA Maximum Allowable Pressure		25 bar g (2) 100^{\circ }C
TMA Maximum Allowable Temperature		350^{\circ }C @ 14bar g
Minimum permissible temperature		-10^{\circ }C
PMO Maximum Working Pressure	JIS/KS 10K	12.3 bar g
	PN16	13.7 bar g
TMO Maximum Operating Temperature		21.3 bar g 350^{\circ }C 14bar $g$
Minimum Operating Temperature Note: Consult Spirax Sarco for lower operating temperatures.		-10^{\circ }C
Maximum Design Cold Hydrostatic Test Pressure	JIS/KS 10K	20.4 bar g
	PN16	24 bar g
	PN25 and JIS/KS20K	37.5 bar g

material (that sth is made of)

Item	Part	material (that sth is made of)
1	valve body	Ductile iron DIN 1693 GGG40 ASTM A395
2	screw plug	Carbon steel 1.0460 (C22.8)
3	gaskets	Reinforced flake graphite
4	Drain Reduction Sleeve	Forged Carbon Steel ASTM A105

Scope of work

There are unavailable areas for this product, which correspond to different flange types, A - A flange JIS 10K, B - B flange EN1092 PN16, B - C - D flanges EN1092 PN25 and JIS 20K correspond to specific limitations in temperature and pressure ranges.

Weight and volume (approximate)

caliber	weights	capacity
DN40	14 kg	1.6 liters
DN50	25 kg	3.2 liters
DN65	28 kg	4.6 liters
DN80	36 kg	6.5 liters
DN100	60 kg	13.5 liters
DN125	128 kg	38.5 liters
DN150	130 kg	42.5 liters
DN200	190 kg	68.0 liters

Recommended tightening torques

Component Caliber	Bolt Specifications	Tightening torque (N-m)
DN40 46 A/F	M56	150 - 165
DN50 46 A/F	M56	150 - 165
DN65 46 A/F	M56	150 - 165
DN80 60 A/F	M72	190 - 210
DN100 60 A/F	M72	190 - 210
DN125 60 A/F	M72	190 - 210
DN150 60 A/F	M72	190 - 210
DN200 60 A/F	M72	190 - 210

Installation and maintenance

Refer to the Installation and Maintenance Guide (IMP023 - 55) supplied with the product for detailed information. Install on horizontal piping with the discharge port pointing directly downward. Note: To ensure rapid discharge of the separated liquid, a suitable trap should be connected to the discharge port.

take care of

This product is recyclable and does not harm the environment when disposed of properly.

Ordering Instructions

Example: 1 - Spirax Sarco DN50 S13 Separator in ductile iron with flange connection EN 1092 PN16.

Available Models

Available types	SKU
DN40 S13 PN25	10231662
DN50 S13 PN25	10231762
DN65 S13 PN25	10231862
DN80 S13 PN25	10231962
DN100 S13 PN25	10231162
S13 DN65 PN16	10231861
S13 DN80 PN16	10231961
S13 DN100 PN16	10231161
