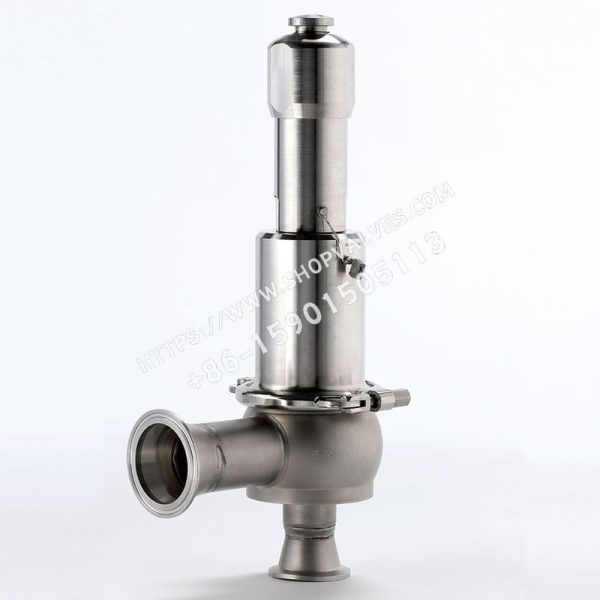

Spirax Sarco Spirax Sarco SVL488 Stainless Steel Safety Valve for Clean Systems DN40

Spirax Sarco SVL488 Clean System Stainless Steel Safety Valve is a stainless steel body, full stroke safety valve, TÜV certified for steam, gas and liquid systems. It is suitable for overpressure protection of low pressure steam equipment, piping, pressure vessels, and is particularly suitable for the brewing and beverage industry, where it meets extremely high standards of hygiene and cleanliness and reduces contamination of process media.

Available Models

• SVL488-B: Sealed bonnet for liquid systems.
• SVL488-C: Packing seal microlift lever for steam (or other wrench required) systems.
  Note: Both models have closed bonnets.

MPN	descriptive
3151466	svl488 cet dn40 clamp1.51 -...
3151468	svl488 cet dn40 clamp2.61 -...
3151469	svl488 cet dn40 clamp3.41 -...
3151470	svl488 cet dn40 clamp5.41 -...

Certification

Each SVL488 safety valve is supplied with a manufacturer's typical test report including valve set pressure and liquid test pressure. Material certificates to EN 10204 3.1 are also available on request.

Standards and certifications

Certified by TÜV according to AD MerkblattA2,TRD412 and Td TÜV SV100. Complies with the requirements of the European Pressure Equipment Directive (PED) 97/23/EC and belongs to Class 4 of the product classification for Group 1 and 2 fluids (gases and liquids). Consult SPECTRO for fluid compatibility.

Sizes and pipe connections

Inlet Caliber	DN	25	40	50	65	80	100
Outlet Caliber	DN	40	65	80	100	125	150
Inlet clamp connection	inch (unit of length equal 2.54 cm.)	1½	2	2½	3	4	4½
Outlet clamp connection	inch (unit of length equal 2.54 cm.)	2	3	4	4½	5	6

Pipe connections are available with DIN 2633 PN16 flanges or ISO 2852 sanitary clamp connections (ISO 2037 standard). The type of connection should be indicated when completing the order.

Other Options

• EPDM soft seal (max. steam setting pressure 4 bar g)
• Standard finish on media contact surfaces 0.75 µm Ra, other finishes on request from Spirax Sarco.

material (that sth is made of)

Item	Part	material (that sth is made of)
1	valve body	Stainless steel 1.4404
2	Seat	Stainless steel 1.4404
3	valve	stainless steels
4	O-Ring Seal	EPDM (FDA approved)
5	Stem guides	Stainless steel 1.4404/PTFE + 15% glass
6	Spring loaded baffle	Stainless steel 1.4404
7	bonnets	Stainless steel 1.4404
8	bonnet	Stainless steel 1.4404
9	adjusting screw	PTFE+15% glass
10	sprung	Stainless steel 1.4310
11	Packing Seal	Stainless steel 1.4404
12	clamp	Stainless steel 1.4401
13	Valve Body Gasket	EPDM (FDA) certified
14	bellow	Flake graphite

Pressure/temperature constraints

Valve body design conditions		PN16
Setting pressure range	greatest	16 bar g
DN25 and DN40	minimal	0.1 bar g
DN50	greatest	15 bar g
DN50	minimal	0.2 bar g
DN65 and DN80	greatest	10.34 bar g
DN65 and DN80	minimal	0.1 bar g
DN100	greatest	8.2 bar g
DN100	minimal	0.1 bar g
temp	Soft seat EPDM	Maximum 150 °C
temp	Soft Seat Viton	Maximum 180 °C
All Models	minimal	-45 °C
Performance Parameters	Vapor, gas	Max 10%
Performance Parameters	fluids	Max 10%
opening and closing differential pressure	Vapor, gas	Max 10%
opening and closing differential pressure	fluids	Max 20%
rated displacement (i.e. engine capacity)	Vapor, gas	0.70
Rated displacement factor d	fluids	0.45
Maximum permissible back pressure		10% for set pressure
Maximum design inlet cold hydrostatic test pressure		24 bar g

SVL488 Saturated Steam Displacement Table (kg / h)

(calculated at 10% exceeding pressure according to EN ISO 4126)

caliber	DN 25/40	DN40/65	DN50/80	DN65/100	DN80/125	DN100/150
Runner Diameter (mm)	23	37	46	60	74	92
Flow area (mm²)	416	1075	1662	2827	4301	6648
Set pressure (bar g) 0.2	151	390	604	1027	1562	2415
Set pressure (bar g) 0.5	214	554	857	1457	2217	3427
Set pressure (bar g) 1.0	319	825	1275	2169	3300	5100
Set pressure (bar g) 2.0	504	1303	2015	3427	5213	8058
Set pressure (bar g) 3.0	678	1751	2707	4605	7006	10829
Set pressure (bar g) 4.0	843	2177	3366	5726	8711	13465

SVL488 Air Displacement Table - Standard (m^{3} / h), 0°C and 1013 mbar

(calculated on the basis of AD - MERKBLATT A2 and TRD 421)

Valve Size DN Inlet / Outlet	25/40	40/65	50/80	65/100	80/125	100/150
Runner area (mm²)	416	1075	1662	2827	4301	6648
Set pressure (bar g) 1.0	386	999	1545	2628	3998	6179
Set pressure (bar g) 2.0	625	1617	2499	4251	6467	9995
Set pressure (bar g) 3.0	852	2204	3406	5795	8816	13626
Set pressure (bar g) 4.0	1069	2768	4278	7278	11071	17111
Set pressure (bar g) 5.0	1287	3331	5149	8761	13326	20597
Set pressure (bar g) 6.0	1505	3895	6021	10243	15581	24083
Set pressure (bar g) 7.0	1723	4459	6892	11726	17836	27568
Set pressure (bar g) 8.0	1941	5023	7763	13208	20091	31054
Set pressure (bar g) 8.2	1985	5136	7937	13505	20542	31752
Set pressure (bar g) 9.0	2159	5587	8635	14691	22346	-
Set pressure (bar g) 10.0	2377	6150	9506	16173	24601	-
Set pressure (bar g) 10.34	2451	6334	9793	16658	25343	-
Set pressure (bar g) 12.0	2812	7278	11249	-	-	-
Set pressure (bar g) 14.0	3248	8405	12992	-	-	-
Set pressure (bar g) 15.0	3466	8957	14735	-	-	-
Set pressure (bar g) 16.0	3684	9533	-	-	-	-

SVL488 Displacement Table - kg/h, 20°C water

(Calculate rated displacement factor ((kdr) = 0.52) overpressure 10% based on AD - MERKBLATT A2 and TRD 421)

Valve Size DN Inlet / Outlet	25/40	40/65	50/80	65/100	80/125	100/150
Runner area (mm²)	416	1075	1662	2827	4301	6648
Set pressure (bar g) 1.0	9970	25800	39900	67900	103000	160000
Set pressure (bar g) 2.0	14100	36500	56400	96000	126000	226000
Set pressure (bar g) 3.0	17300	44700	69100	118000	179000	276000
Set pressure (bar g) 4.0	19900	51600	79800	136000	206000	319000
Set pressure (bar g) 5.0	22300	57700	89200	152000	231000	357000
Set pressure (bar g) 6.0	24400	63200	97700	166000	253000	391000
Set pressure (bar g) 7.0	26400	68300	106000	180000	273000	422000
Set pressure (bar g) 8.0	28200	73000	113000	192000	292000	451000
Set pressure (bar g) 8.2	28500	73900	114000	194000	292000	458000
Set pressure (bar g) 9.0	29900	77400	120000	204000	310000	-
Set pressure (bar g) 10.0	31500	81600	126000	215000	326000	-
Set pressure (bar g) 10.34	32000	82700	128000	218000	334000	-
Set pressure (bar g) 12.0	34600	89400	138000	-	-	-
Set pressure (bar g) 14.0	37300	96600	149000	-	-	-
Set pressure (bar g) 15.0	38600	99700	154000	-	-	-
Set pressure (bar g) 16.0	39900	103000	-	-	-

Weight (approximate) kg

inlet	exportation	weights
DN25	DN40	9.0
DN40	DN65	20.0
DN50	DN80	21.7
DN65	DN100	26.5
DN80	DN125	47.0
DN100	DN150	56.0

Security information, installation and maintenance

For detailed information, refer to the Installation and Maintenance Guide supplied with the product.
Installation Note: Make sure that the centerline of the spring chamber of the safety valve is vertically upward during installation.

Selection Guide

Available types	SVL488	SVL488
framework	B = Closed bonnet/airtight bonnet	B
	C = Closed bonnet/packing seal microlift stem	-
Seal Material	E = EPDM (FDA) 'O' rings and bellows	E
inlet	PN16 = Flange PN16 T = Sanitary clamp , ISO 2852	PN16

Ordering Instructions

Example:1 - Spirax Sarco DN50 SVL488-B-S-PN16 safety valve, set pressure 10 bar g. (If no bellows is required, please add "no bellows required".)
For saturated steam applications above 4 barg pressure, consult spiraxsarco.
